Spindelmotor PLx

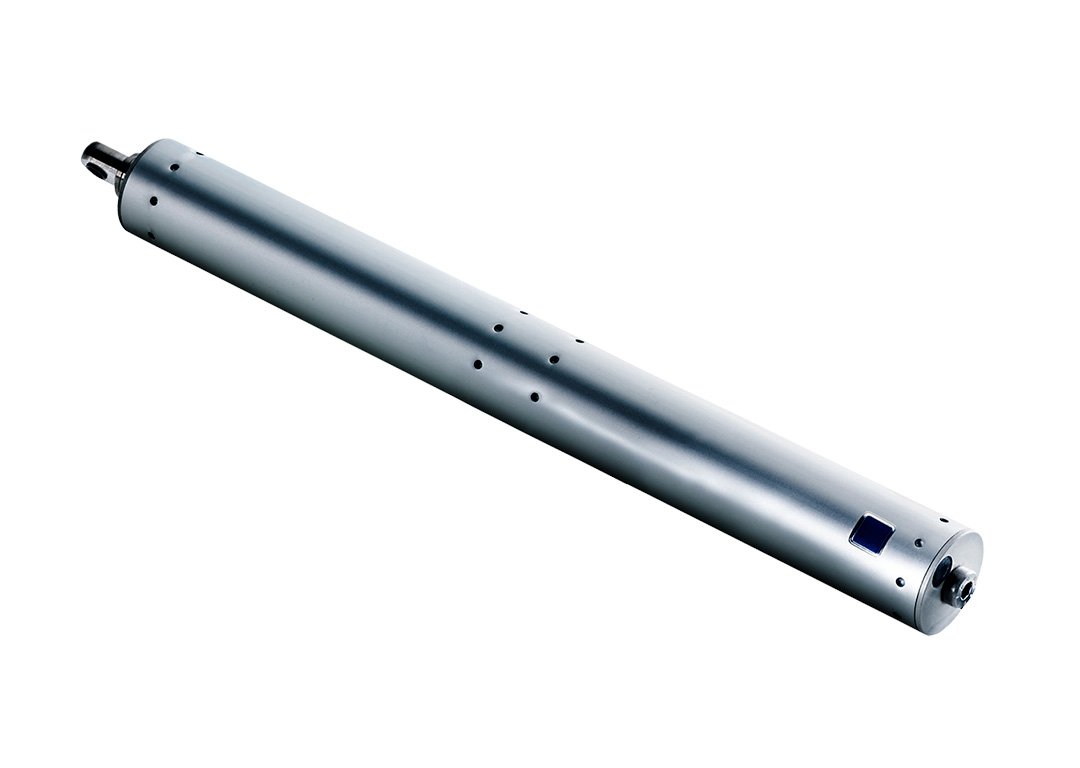

Spindelmotor PLx består af modellerne PLA og PLS – rørspindelmotorer for store åbnelængder og stor trykkraft udviklet for anvendelse til ABV brandventilation og røgventilation (EN12101-2) samt naturlig ventilation projekter.
Inspiration- Produkt Information
- Teknisk Information
Inspiration
Produkt Information
Teknisk InformationSpindelmotor PLx
Spindelmotor PLx består af modellerne PLA og PLS – rørspindelmotorer for store åbnelængder og stor trykkraft udviklet for anvendelse til ABV brandventilation og røgventilation (EN12101-2) samt naturlig ventilation projekter. Fleksible motorer i højkvalitets materialer som aluminium og rustfri stål sikrer stabil og jævn drift samt lang levetid.
Motorer leveres i 2 versioner alt efter funktion og behov. S12 version er programmerbar og egner sig således også til projekter med NaturligVentilation.
Motorer levers med GoreTex membran for udluftning af motorhus. Dette minimerer risikoen for opbygning af kondens i motorhuset ved udendørs installation eller installation I fugtige miljøer.
I programmerbar version (S12) kan b.la. følgende justeres
Synkroniseret multi drift med flere motorer i serie
Elektronisk soft-start, soft-stop og soft-close
Justerbar åbnelængde, motorkraft og åbne-lukkehastighed
Reduceret lukkekraft (lukke sikkerhed)
Leveres med en bred vifte af montagekonsoller der egner sig til alle oplukke typer og profil systemer.
Produktvariationer
PLA6 24 V S3
| Product Name | PLA6 S3 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | Stand-alone, with/without rear suspension |
| Switch-Off Electronics | S3 – integrated electronic load protection, with locked retriggering function |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 0.8 A |
| Stroke | 100 – 1200 mm |
| Force (Push / Pull) | 600 – 300 / 600 N; dependant on mounting |
| Speed (Open / Close) | 6.0 / 6.0 mm/s |
| Extension Mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA6 24 V S12
| Product Name | PLA6 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-Off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 0.8 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 600 – 300 / 600 N; dependant on mounting, programmable |
| Speed (Open / Close) | 6.0 / 6.0 mm/s |
| Extension Mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PL8 24 V S3
| Product Name | PLA6 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-Off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 0.8 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 600 – 300 / 600 N; dependant on mounting, programmable |
| Speed (Open / Close) | 6.0 / 6.0 mm/s |
| Extension Mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PL8 24 V S12
| Product Name | PLA8 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-Off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 1.4 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 600 – 300 / 600 N; dependant on mounting, programmable |
| Speed (Open / Close) | 6.0 / 6.0 mm/s |
| Extension Mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA10 24 V S12
| Product Name | PLA10 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-Off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 2.5 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 1000 – 300 / 1000 N; dependant on mounting, programmable |
| Speed (Open / Close) | 12.6 / 12.6 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection cable | halogen free, grey 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA16 24 V S12
| Product Name | PLA16 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-Off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-off Current | 2.5 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 1600 – 300 / 1600 N; dependant on mounting, programmable |
| Speed (Open / Close) | 7.0 / 7.0 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA101 24 V S3
| Product Name | PLA101 S3 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S3 – integrated electronic load protection, with lcoked retriggering function |
| Rated Voltage | 24 V DC |
| Cut-off Current | 1.0 A |
| Stroke | 100 – 1200 mm |
| Force (Push / Pull) | 1000 – 300 / 1000 N, dependant on mounting |
| Speed (Open / Close) | 4.6 / 4.6 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA101 24 V S12
| Product Name | PLA101 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S12 – intelligent, programmable control electronics |
| Rated Voltage | 24 V DC |
| Cut-off Current | 1.0 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 1000 – 300 / 1000 N; dependant on mounting; programmable |
| Speed (Open / Close) | 4.6 / 4.6 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection cable | halogen free, grey 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLA116 24 V S3
| Product Name | PLA116 S3 24 V DC |
|---|---|
| Area of application | ventilation, SHEV |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S3 – integrated electronic load protection, with locked retriggering function |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 1.2 A |
| Stroke | 100 – 1200 mm |
| Force (Push / Pull) | 1600 – 300 / 1600 N; dependant on mounting |
| Speed (Open / Close) | 4.0 / 4.0 mm/s |
| Extension Mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP65 |
PLA116 24 V S12
| Product Name | PLA116 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S12 – integrated, intelligent control electronics |
| Rated Current | 24 V DC |
| Cut-Off Current | 1.2 A |
| Stroke | 100 – 1200 mm; programmable |
| Force (Push / Pull) | 1600 – 300 / 1600 N; stroke dependant, programmable |
| Speed (Open / Close) | 4.0 / 4.0 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø36 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 65 |
PLS15 24 V S12
| Product Name | PLS15 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S12 – integrated, intelligent control elecronics |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 4.0 A |
| Stroke | 300 – 1200 mm; programmable |
| Force (Push / Pull) | 1500 – 1350 / 1500 N; stroke dependant, programmable |
| Speed (Open / Close) | 16.0 / 16.0 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø50 mm, length stroke dependant |
| Connection cable | halogen free, grey 3×1.0 mm², length 3 m |
| Protection Rating | IP 54 |
PLS30 24 V S12
| Product Name | PLS30 S12 24 V DC |
|---|---|
| Area of Application | ventilation, SHEV, NSHEV (EN 12101-2) |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S12 – integrated, intelligent control electronics |
| Rated Voltage | 24 V DC |
| Cut-Off Power | 5.0 A |
| Stroke | 300 – 1200 mm; programmable |
| Force (Push / Pull) | 3000 – 1350 / 3000 N; stroke dependant, programmable |
| Speed (Open / Close) | 7.8 / 7.8 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø50 mm, length stroke dependant |
| Connection Cable | halogen free, grey, 3×1.0 mm², length 3 m |
| Protection Rating | IP 54 |
PLS50 24 V S12
| Product Name | PL550 S12 24 V DC |
|---|---|
| Area of Application | ventilation, RWA |
| Variants | stand-alone, with/without rear suspension |
| Switch-off electronics | S12 – integrated, intelligent control electronics |
| Rated Voltage | 24 V DC |
| Cut-off power | 4,2 A |
| Stroke | 200 – 750 mm |
| Power (Push / Pull) | 5000 / 5000 N; programmable |
| Speed (Open / Close) | 4,0 / 4,0 mm/s |
| Extension mechanism | stainless steel spindle and spindle tube |
| Housing (D x L) | anodised aluminium, Ø50 mm, length stroke dependant |
| Connection cable | halogen free, grey, 3×1,0 mm², length 3 m |
| Protection Rating | IP 54 |
